Digital Class Notes Meeting 12

Chi trova un amico trova un tesoro

Topics: Color Management, Monitor Calibration, Photoshop's Color Working Space, Printer Profiles, and Color Managed Workflows to Epson and other printers.

Color Management
The goal of Color Management is to be able to get WYSIWYG (What You See Is What You Get) on all devices from monitors to printers. This has proven difficult to do because each "device" (different monitors, printers, etc.) shows colors that can't be displayed on other devices. For example, most monitors can show intense greens that can't be reproduced on paper. The range of colors that can be displayed on a device is described as the "gamut" of possible colors. The gamut of a monitor represents all the colors that it can display.

Photoshop version 5 introduced the possibility of a complete color-managed workflow, and later versions took it further.

The link below will download a lengthy PDF document to your machine that describes color management issues that are a significant part of Photoshop 5's workflow. This large 6MB file requires Adobe Acrobat reader. Download ps_cms.pdf now from Bill Schneider's web site, or go to Adobe's web site for it.

Monitor Calibration
The single most important task in providing a good color-managed system is to calibrate your monitor, and write a monitor color profile that describes the monitor's characteristics to the operating system. Monitor profiles are stored in various locations depending on the OS used:

On a Mac under OSX, you can calibrate your monitor by going to System Preferences, clicking on Displays, and choosing the Color button. You can click a "canned" profile that contains information about the phosphor color of your monitor, and fine tune the monitor's appearance by clicking the Calibrate button. You will be guided through a series of dialog boxes that calibrate your monitor as close as possible without a hardware calibrator device. If not done correctly though, you may end up with color worse than before. As long as you don't overwrite the original monitor profile, you can always revert to a previous calibration.

When you are calibrating, choose a 2.2 gamma for the monitor (for OSX Snow Leopard and later, and for all Windows computers), and choose 6500K as the color temperature of the white point (both Mac and Windows). Choosing a warmer color temperature (i.e., D50) often makes the display excessively dark and limits its ability to display a full color gamut, and should be chosen only when working in a dim room illuminated by only calibrated tungsten lights.
When you save a new color profile made with the software utility, be sure to give it a new name so that you don't overwrite an existing profile. You can revert to an older profile at any time as long as you don't overwrite it.

Hardware-Assisted Monitor Calibration
VisCom uses a XRite/Gretag Macbeth Eye-One for calibrating LCD displays, and we have recently obtained an XRite Color Munki to use too. These systems consist of a device that attaches to the front of a monitor, and accompanying software that displays different colors for the device to evaluate. The device reads the actual color produced by the monitor, and compares that to what the software sent. When complete (it takes about 5 minutes), the software writes a monitor profile to the ColorSync Folder that informs the computer about the characteristics of that monitor and sets the monitor to a proper gamma (gamma is similar to a contrast setting for midtones) and sets the color temperature (the color tint of the white tones). This method is more accurate than "eyeball" calibration systems like the Mac' s built-in system.

The devices are relatively inexpensive compared to what they cost just a few years ago. They are available for both Macs and for Windows PCs. Monitor calibrators from DataColor include the Spyder Express ($89) to the more advanced Spyder2 Pro ($279). See their web site at http://spyder.datacolor.com/index_us.php for other offerings. The XRite/Gretag Macbeth Eye-One system is another option, and versions of it can calibrate printers. The ColorMunki is XRite's calibration device, and it can calibrate both monitors and printers. The cost is $499 (10/2010), but considerable discounts may be available to students. (OU students should contact Midwest Photo in Columbus, OH to inquire.). As of summer 2011, there is a ColorMunki Display unit that is less expensive (~$170 street) that is limited to monitor calibration only. As always, check to see if there are student discounts available.

If a hardware calibration system is used on a Windows PC, Adobe Gamma (sometimes installed during the installation of older versions of Photoshop) must be removed from the Start Up folder. Only one monitor calibration system should be used at a time.

Color Working Spaces in Photoshop
Specifying a suitable device-independent working space is critical to obtaining the best results when you go to press, or place pictures on the web. There are two commonly-used color spaces that are important - AdobeRGB(1998) and sRGB.

If you have pictures destined for both print and the web, use Adobe RGB as your main color space, and create an action (see Meeting 16) for reducing the color space to sRGB for versions of the files destined for the web. The web uses smaller files anyway, so you will have two versions of each file for each purpose.

Converting the Color Working Space of Files
Files in one color working space can be converted to another working space [i.e. sRGB --> Adobe RGB (1998)] using the Edit>Convert to Profile command. This can be run at any time on an open file. Photoshop actions (Meeting 16) may be employed to quickly convert the color profile of a file with just a keystroke.

See the illustration below for dialog box settings for a conversion from sRGB to Adobe RGB (1998).

The original color space (Source Space) shows the current color profile of your file, and the Destination Space shows what it will be afterward. If necessary, uncheck Flatten Image to Preserve Appearance to keep a layered file. Click OK to make the change.

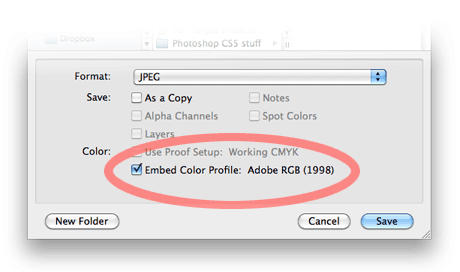

Be sure to save your file afterward, and be sure that you check any Embed Color Profiles buttons in the File>Save dialog box...

Note: Avoid using the Edit>Assign Profile unless you are well-versed in Color Management principles and understand what you are doing. Chances are that it cause improper color shifts when used without knowledge.

Opening Files that are in a Different Working Space than Your Current Photoshop Defaults:
When a file is opened having a working space different from the user's default (i.e., opening a sRGB file on a lab computer set to AdobeRGB as the default in Photoshop), a dialog box appears alerting the user to the mismatch. In the dialog box, the user can select from the following choices:

1) Use the file's currently embedded profile (instead of the working space)
2) Convert document's color to the current working space
3) Discard the embedded profile (don't color manage)
Using the document's embedded profile is an acceptable choice when opening files created elsewhere, unless there is a desire to have all files in a consistent color space, i.e. AdobeRGB(1998). Converting your files to AdobeRGB (1998) is needed in our lab if you intend to print your work to the Epson/ColorBurst RIP printers (LETTER-RIP & SUPER-RIP).

If the file does not have an embedded color profile, another similar dialog box appears with the following choices:
1) Leave as is (don't color manage)
2) Assign working RGB
3) Assign Profile
The first choice makes Photoshop act like early, non-color managed versions (up through version 4). The second choice opens the document and tags it with the current working space profile (often a good choice, but keep an eye on color shifts). The last possibility allows the user to assign a specific profile to the file. While not common, there are times when that could be useful.

The Color Gamut of Common Working Spaces
Below are screen captures of an X-Rite ColorShop 2.6 software screen that graphically compares the gamuts of Adobe RGB to sRGB and to a generic CMYK space, and a comparison between sRGB and CMYK that shows how much color gamut is clipped by using sRGB..


Comparison of the Adobe RGB (1998) working space to sRGB.	Comparison of the Adobe RGB (1998) working space to generic CMYK.	Comparison of sRGB to generic CMYK working spaces. Note how the CMYK has a larger gamut than sRGB.

Optionally "Rolling Your Own" Working Spaces
For optimum CMYK commercial printing, a color space popularized by Bruce Fraser in his book Real World Photoshop 6 is used by many. Most users call the color space "BruceRGB" after the creator. To create this color working space, open Photoshop and choose Photoshop>Color Settings. Click the Advanced checkbox to enable more choices in the RGB Working Space drop-down list. Select the "Custom RGB..." setting. In the dialog box, use the following settings:
Gamma: 2.2
White Point: 6500K (D65)
Red xy: 0.6400 0.3300
Green xy: 0.2800 0.6500
Blue xy: 0.1500 0.0600

Save the new settings as BruceRGB.icm in the System Folder\ColorSync Profiles folder (Macintosh OS9), or in the Library>ColorSync>Profiles folder (Mac OSX).

For Windows, save the file in the Windows>System32>Spool>Drivers>Color. BruceRGB's color gamut has a slightly reduced green excursion when compared to Adobe RGB (1998), fitting a bit better in the green range of current-technology CMYK printing.

Camera Profiles
XRite introduced in 2009 a camera profiling system called ColorChecker Passport. The kit contains a hard-case wallet having two different color targets, and a neutral toned target on another "page". It's purpose is to provide custom color profiles for your camera/lens combination to be used in software such as Lightroom, and to provide an easy means to adjust the warmth/coolness of different scenes.

The profiling panel (pictured on the right side) is photographed in a camera RAW format in two types of light (i.e. tungsten and daylight). The raw files are converted to Adobe DNG raw files through a program such as Lightroom or Bridge, then dropped into the XRite program to make a camera profile. This profile then shows up as a choice in Lightroom when "developing" the raw file. It's very fast and easy to do, and the results are good.

This kit costs about $100 ordered online. There may be student discounts, so ask first.

Proofing
Color management with profiles permits making a "hard proof" where you make a print and "soft-proofing" where you look at color on-screen to see how a picture might reproduce. Both are commonly used for estimating how a picture will look when printed on a printing press. This works best when a printer with a large gamut (i.e. Epson inkjet) is used to simulate output from a device having a smaller gamut (newsprint on a printing press). Newsprint has a very small gamut when compared to Epson prints, so it is easy to "throttle back" Epson output to match the lesser quality/gamut of newsprint.

Soft Proof
Photoshop from version 6 onward permits soft-proofing on the monitor with the View>Proof Colors command. It's not as accurate as a printed proof (Hard Proof) explained later, but you'll find major problems quickly this way without wasting paper and time.

First, select the profile of the printing process that you wish to soft proof with View>Proof Setup>Custom. Choose the printing process from choices available in the Device to Simulate list.

For the classroom example, choose U.S. Web Uncoated v2 as the printing process. Click the Simulate Paper Color check box to see the effects of tonal compression that occurs when going to print. The effects are often visibly severe with the picture looking terribly flat. Writer Bruce Fraser recommends looking away from the screen for a few seconds before looking to adjust to the new appearance.

Note that only some of the profiles available are modern enough for the Simulate Paper Color box to work. Older profiles won't have this option, and soft proofing may not work.

Hard Proof
To make a hard proof, you need access to a proof printer for which you have printer profiles and for which you can turn off automatic color management. An Epson without a RIP is a good candidate.

First select the printing process you wish to simulate. As above in Soft Proofing, select the desired profile that you wish to proof with View>Proof Setup>Custom. Choose the printing process from choices available in the Device to Simulate list.

Choose File>Print and make sure that Color Management shows in the drop-down list on the right. Check the Proof radio button instead of Document. Next, go to the Proof Setup list and choose Current Custom Setup. The Proof radio button field should now display the profile selected earlier in your View>Proof Setup>Custom dialog box. That profile should match the output device you wish to simulate.

Click the Simulate Paper Color box under the Proof Setup list. Simulate Paper Color is not available with all profiles.

Click the Simulate Black Ink box if the profile permits it. This is not available with all profiles.

After you press the Print... button, turn off color management in the printer's dialog box. Each printer has this in a different location, so consult your printer's manual for how to find it.

Press print again, and the hard proof should simulate the way the print appears once printed on a press.

A website containing a more thorough description of Photoshop's color management is Andrew Rodney's Digital Dog - http://www.digitaldog.net. This site is chock-full of good color management information. Also on this site are tips for using custom-made color profiles with Epson printers.

A very good book that describes color management in great detail is Real World Color Management by Bruce Fraser, Chris Murphy, & Fred Bunting (Peachpit Press).

Hardware for making Monitor profiles includes:
DataColor's Spyder measuring pucks bundled with various software from $89 and up. EXCELLENT!
X-Rite Eye1 system has models that merely create monitor profiles, to models that do printers too. Prices begin at $150 (B&H)

Hardware for reading printer output for making printer profiles includes:
X-Rite - has several models including the ColorMunki, and the Eye 1
DataColor's

Third Party Profiles
Cathy's Profiles - send in a printed chart on your printing paper and get a profile created. Cost is $35/profile.

Typical Color Managed Workflow for Printing to Desktop Epson Printers (not the RIP printers)
1) Calibrate your monitor using one of the steps outlined above. A hardware calibrator is best, but more expensive.
2) Choose a suitable working space. Adobe RGB (1998) is a good choice for quality printed output and should be the default in the VisCom labs. Use sRGB for web work only.
3) Obtain a good color profile for the printer plus paper type that you will use. Install it in the Library>ColorSync>Profiles folder (Mac), or the Windows>System32>Spool>Drivers>Color folder (Windows XP). Each paper type requires a different profile. Epson's standard printer driver installs some canned profiles and uses them automatically at print time, but these canned profiles range from very good to fairly bad. Custom-made profiles for individual printers are often much better.
4) (Optional) Obtain a profile for your scanner or your camera. remember that there is no such thing as "typical" light when photographing because conditions vary so widely. Using a scanner or camera profile is often omitted because any off-color casts can usually be fixed in Photoshop anyway using a calibrated monitor.

Once the system is setup as in the above steps, scan the artwork in RGB (not CMYK!) and edit the tones in Photoshop. You will be editing in the RGB color working space Adobe RGB (1998) which has a wider gamut than sRGB and therefore can contain more colors. Epson printer drivers require RGB data, so don't convert the picture to CMYK.

Once you are ready to print to the Epson printer, you can apply a custom printer profile one of the following ways. Use only one of them or you will double-correct your file and end up with odd colors. The following steps are specific to the Epson 1270/870 printers once found in the VisCom lab and the examples depict using a profile for Epson Photo Quality Inkjet Paper. If you are using Epson Photo Paper, substitute the profile named 1270PP.ICM for the profile depicted in the examples. Click here for a list of profiles for the older printers once found in the VisCom lab.

Method 1. Use Photoshop's Convert to Profile command. (Edit>Convert to Profile). This requires turning off the Epson printer driver's internal color management when printing. This method manually applies a color profile before print time from within Photoshop. It works on both Macs and on PCs and with all printers. NOTE: 2010 Update: Avoid this method for most current inkjet printers. It is useful when using a non-standard printer like a FUJI Pictorgraphy 4000 that uses File>Export for printing instead of File>Print. In this case, it's the only way to apply a printer profile.

Method 2. Use the Printer Profile drop-down list in the Photoshop "Print" dialog box. (File>Print. Choose the Color Management button (toggles between Color Management and Output), choose a destination profile in the Printer Profile list. This requires disabling the Epson printer driver's internal color management in subsequent steps. Works with Macs and with newer printers under Windows 98, and Windows XP.

It is important to realize that only one method should be used when printing. If you apply a profile twice, colors can shift unpredictably.

Printing to the VisCom RIP printers (Epson 4800 inkjets using the ColorBurst RIP)
(Follow this link)

Short Instructions for Printing to an Epson 870 using Epson Premium SemiGloss Photo Paper
This simplified set of instructions works using Method 2 above. Be sure to use Premium Glossy Photo Paper from Epson - other papers require different settings.

Printing to a 'Real' CMYK Press?
Choosing the correct profiles for making CMYK separations is necessary. Here's a link to Creative Pro.com for how it's done.
